Precision swivel chuck for diverse injection nozzle bodies
"Complete machining in one clamping operation."
Our swivel chuck solutions enable complete machining in one clamping. Once the workpiece is clamped, machining takes place on the machine side, after which the chuck can rotate 180°, very precisely and at high speed. The workpiece can now be machined on the opposite side without reclamping or other time-consuming re-setting of the chuck. An unprecedented increase in efficiency and quality!

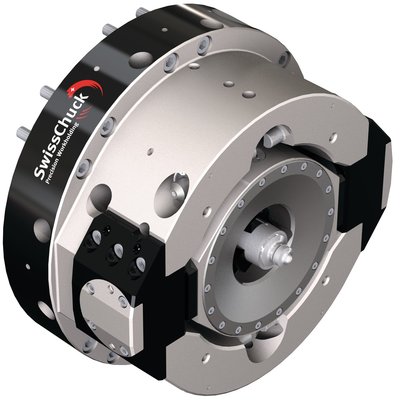

![[Translate to English:]](/fileadmin/_processed_/5/b/csm_3_SKGCH_315_So_Spannstellung_geschwenkt_4293dd6665.jpg "[Translate to English:]")
Technical Data
3SKGCH Swivel Chuck
| Type | Item | ø Size (mm) | Height (mm) | Speed (1/min) | Number of Tubes | Weight (kg) |
| 3SKGCH 315 | SX1004490 | 315 | 163 | 100 | - 4 hydraulic -2 pneumatic | 68 |
| 3SKGCH 335 | SX1018758 | 335 | 173 | 200 | - 4 hydraulic -2 pneumatic | 83 |
Cannot find the size you need? Contact us; our swivel chucks are custom-made and tailored to your requirements.
We will be glad to help you!
Clamping Task

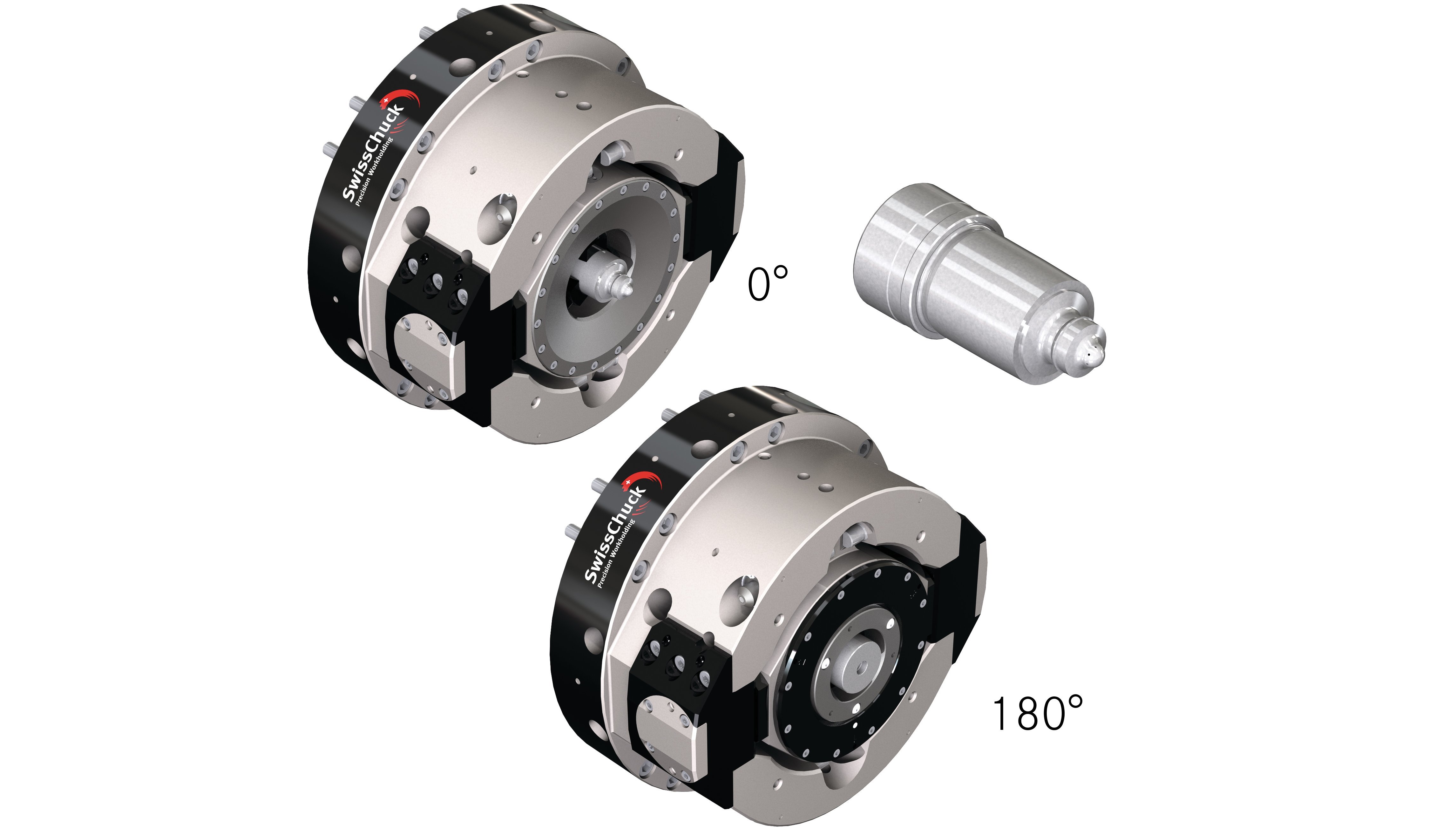

- 180° swivel around the transverse axis
- backlash-free locking of the two swivel positions with monitoring
- optimal chip flow
- Top jaws with precision interface => jaw change without readjustment
- clamping repeatability <= 0.01 mm - swivel accuracy <= 0.01 mm
- interchangeable axial stops with workpiece presence detection
- chuck sealed
Advantage
- Complete machining in one clamping operation
- No chuck change-over between operations 1 and 2
- Hermetically sealed; low maintenance
- Fast change-over of the jaws
